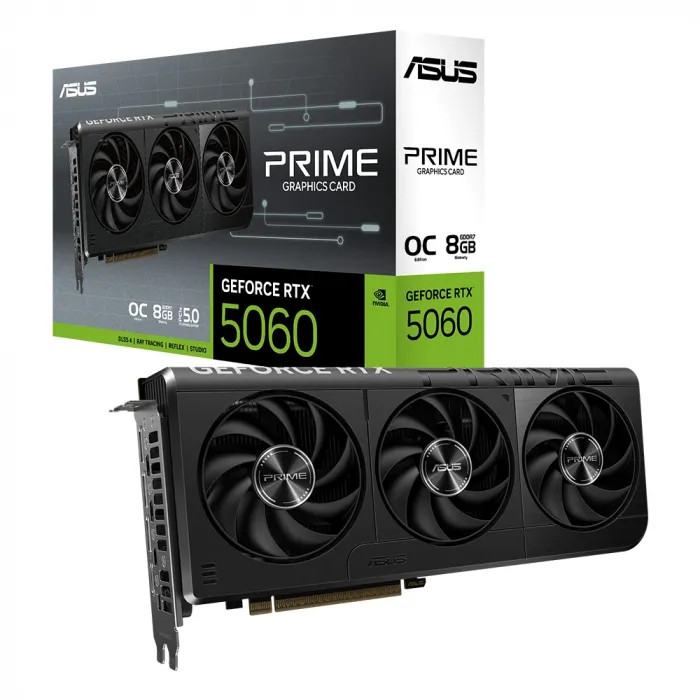

Primed for Power

Experience Primal performance with the Prime GeForce RTX 5060, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

Model: PRIME-RTX5060-O8G
Graphics Engine: NVIDIA® GeForce RTX™ 5060
AI Performance: 630 TOPs
Bus Standard: PCI Express 5.0
OpenGL Support: 4.6
Video Memory: 8GB GDDR7
Boost Clock:

• OC Mode: 2595 MHz

• Default Mode: 2565 MHz

CUDA Cores: 3840
Memory Speed: 28 Gbps
Memory Interface: 128-bit
Max Digital Resolution: 7680 x 4320 (8K)

Display Outputs:

• 1 x HDMI® 2.1b

• 3 x DisplayPort 2.1b

• HDCP 2.3 support

• Supports up to 4 displays

Multi-GPU Support: No (NVLink/CrossFire not supported)

Accessories:

• SpeedSetup Manual

• Thank You Card

Software:

• ASUS GPU Tweak III

• MuseTree

• GeForce Game Ready & Studio Drivers (available online)

Dimensions:

• 268.3 x 120 x 50 mm

• 10.56 x 4.72 x 1.97 inches

• Slot: 2.5-slot

• SFF (Small Form Factor) Ready: Yes

Power Requirements:

• Recommended PSU: 550W

• Power Connector: 1 x 8-pin

Note:
Wattage recommendation is based on fully overclocked CPU + GPU. For a more accurate recommendation, visit the ASUS PSU selector: ASUS Power Supply Units.
