Model

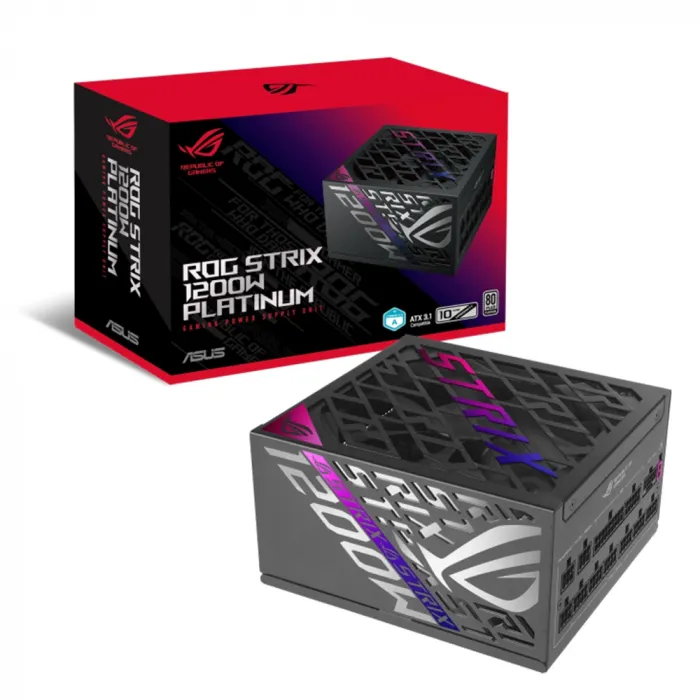

1200W ATX 3.1 Platinum Power Supply

Form Factor & Standards

• Intel Form Factor: ATX12V

• ATX Standard: ATX 3.1

• PFC Type: Active PFC

• Efficiency Certification: 80 Plus Platinum

• ROHS Compliance: Yes

Dimensions

• Size: 160 x 150 x 86 mm

Performance & Reliability

• Maximum Output Power: 1200W

• MTBF (Mean Time Between Failures): >120,000 hours @ 25°C

• Protection Features:

  • OPP (Over Power Protection)

  • OVP (Over Voltage Protection)

  • UVP (Under Voltage Protection)

  • SCP (Short Circuit Protection)

  • OCP (Over Current Protection)

  • OTP (Over Temperature Protection)

AC Input

• Voltage Range: 100 – 240V AC

DC Output & Load

• Total Output: 1200W

Cable Connectors

• 1 x 24/20-pin Motherboard Connector

• 2 x 4+4-pin CPU Connectors

• 1 x 16-pin PCI-E Gen 5.1 Connector (PSU & Component Side)

• 4 x 6+2-pin PCI-E Connectors

• 6 x SATA Connectors

• 3 x Peripheral (Molex) Connectors

Included Accessories

• 1 x Power Cord

• 1 x Motherboard Power Cable (610mm)

• 2 x CPU Cables (1000mm)

• 1 x PCI-E Gen 5.1 (16-pin to 16-pin) Cable (750mm)

• 4 x PCI-E (8-pin to 6+2-pin) Cables (750mm)

• 2 x SATA 1-to-3 Cables (400+120+120mm)

• 1 x Peripheral 1-to-3 Cable (400+150+150mm)

• 1 x ROG Strix DIY Sticker

• 1 x User Manual

Cooling & Noise

• Cybenetics Noise Certification: A

• 0dB Fan Technology: Yes – Fan remains off under light to moderate loads

• 0dB Fan Button:

  • ON: Fan activates only under high loads

  • OFF: Fan spins continuously at all loads
