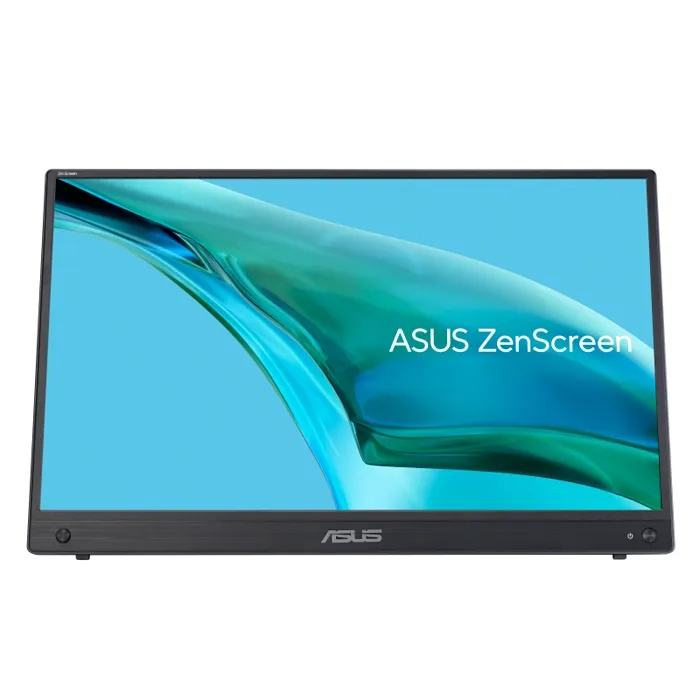

ASUS ZenScreen MB16AHG Portable Monitor

Extend your vision. Smooth your world
ASUS ZenScreen MB16AHG is a 15.6-inch IPS FHD portable monitor with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates for the smoother-than-ever experience. A fold-out adjustable stand enables a multitude of tilt angles to ensure comfortable viewing. Dual USB-C™ and mini-HDMI connectivity enables displaying content from a wide-range of devices, so you can enjoy an expansive view for the best work and entertainment experiences, wherever you go.

Display

Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Color Space (sRGB) : 100%
Brightness (Typ.) : 300cd/㎡
Contrast Ratio (Typ.) : 1200:1
Display Colors : 16.7M
Response Time : 3ms(GTG)
Refresh Rate (Max) : 144Hz
Flicker-free : Yes

Video Feature

Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes, 1.4
VRR Technology : Yes (Adaptive-Sync)
DisplayWidget : Yes, DisplayWidget Lite
Low Blue Light : Yes

I/O Ports

USB-C x 2 (DP Alt Mode)
Mini HDMI x 1
Earphone Jack : Yes

Signal Frequency: Digital Signal Frequency : HDMI: 30-180 KHz(H) / 60-144Hz (V) USB-C: 180 KHz(H) / 60-144Hz (V)

Power Consumption

Power Consumption : ≦17W*
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (+15° ~ +35°)
Height Adjustment : No
1/4" Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.20 cm (14.17" x 8.93" x 0.47")
Box Dimension (W x H x D) : 48.50 x 30.50 x 7.60 cm (19.09" x 12.01" x 2.99")

Weight (Esti.)

Net Weight without Stand : 0.92 kg (2.03 lbs)
Gross Weight : 2.78 kg (6.13 lbs)

Accessories (vary by regions)

Mini HDMI to HDMI cable
Power adapter
Quick start guide
USB Type-C to A adapter
USB-C cable
Warranty Card
ZenScreen sleeve

Operation Temperature / Humidity

Operation temperature : 0~40℃
Operation humidity : 20-90% RH

Certificate

TÜV Flicker-free
TÜV Low Blue Light
AMD FreeSync Premium
