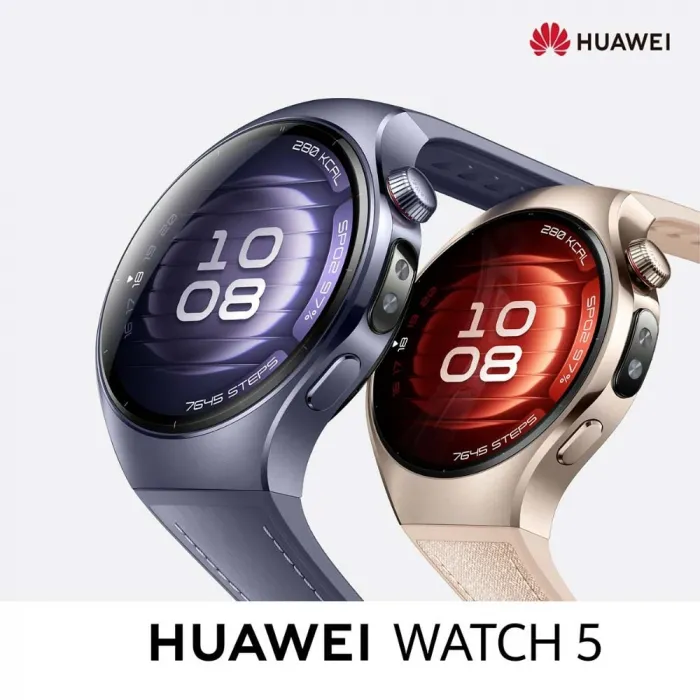

HUAWEI WATCH 5 (46 mm) – Full Specifications

Dimensions & Weight

• Size: 46 mm × 46.7 mm × 11.3 mm

• Wrist Size Compatibility: 140 – 210 mm

• Weight:

  • Purple / Silver: Approx. 58 g (excluding strap)

  • Black: Approx. 63 g (excluding strap)

Note: All measurements are theoretical values and may vary slightly by product.

Display

• Type: 1.5-inch LTPO 2.0 AMOLED color screen

• Resolution: 466 × 466 pixels, 310 PPI

• Brightness: Peak brightness up to 3000 nits

Build & Materials

• Case Materials:

  • Purple / Silver: Aerospace-grade titanium

  • Black: 316L stainless steel

• Strap Options:

  • Purple: Composite strap

  • Silver: Titanium strap

  • Black: Fluoroelastomer strap

Audio

• Speaker: Supported

• Microphone: Supported

Sensors

• Acceleration Sensor

• Gyroscope

• Compass

• Optical Heart Rate Sensor 6.0

• Barometer

• Ambient Light Sensor

• Body Temperature Sensor

• ECG Sensor

• Depth Sensor

• Tactile Sensor

Buttons & Controls

• Rotating Crown (Top Button)

• Side Button (Bottom)

• HUAWEI X-TAP (custom gesture area)

Charging & Battery

• Charging Port: Wireless charging

• Included Charger: HUAWEI Wireless SuperCharger (2nd generation)

• Charger Input: 5V–10V DC / 2A MAX

Battery Life

Standard Mode:

• Up to 4.5 days (typical usage)

• Up to 3 days with Always-On Display (AOD)

Battery Saver Mode:

• Up to 11 days (maximum)

• 7 days (typical usage)

• 4.5 days with AOD

Note: When paired with an iPhone, battery life is slightly reduced (up to 3 days or 2 days with AOD).

Water & Dust Resistance

• 5 ATM (ISO 22810:2010): Suitable for pool/beach swimming

• IP69 (GB/T 4208-2017): High-pressure water spray resistant

• EN13319 Compliant: Supports freediving up to 40 meters

Not suitable for:

• Hot showers, saunas, hot springs

• Scuba diving or dives deeper than 40m

• Use with shampoo, detergents, or soaps

• Straps made from composite vegan leather, titanium, or ceramic in wet conditions

Connectivity

• Bluetooth: BT 5.2, BR + BLE

• Wi-Fi: Wi-Fi 6 (2.4 GHz + 5 GHz) — IEEE 802.11a/b/g/n/ac/ax

• NFC: Supported

• GNSS:

  • L1: GPS, GLONASS, GALILEO, BeiDou, QZSS

  • L5: GPS, GALILEO, BeiDou, QZSS

System Compatibility

• Android 9.0 or later

• iOS 13.0 or later

Operating Environment

• Operating Temp: 0°C to 35°C

• Storage Temp: –20°C to +55°C

In the Box

• HUAWEI WATCH 5 (46 mm) × 1

• HUAWEI Wireless SuperCharger (2nd Gen) × 1

• Quick Start Guide

• Safety Information

• Warranty Card
